Transform Your Yard!
FLEXfence is the unique and exciting louver system that lets you customize your landscaping. Create unique louvered designs and patterns without the problems associated with spacing and fitting boards.
FLEXfence works inside and out!
The FLEXfence Louver System Standard 4-Foot Kit
• All fastening hardware
• 2 pieces of 4-foot rails
• 22 Brackets
• 1 Operating Bar
• Easy to follow instruction sheets
FLEXfence is made from recycled PVC, is U.V. stabilized, and has excellent strength qualities.
FLEXfence is available in 4 foot standard kits or custom lengths to a maximum of 8 feet, and can be easily sized to meet your needs.
Easy Do-It-Yourself Installation
FLEXfence lets you create unique louver designs and patterns without the problems associated with spacing and fitting boards.
- Place FLEXfence rails onto the top and bottom crossbars for vertical operation, or onto the fence posts for horizontal operation.
- Fasten the brackets onto the pre-punched holes on the rails, allowing the brackets to swivel freely.
- Cut 1″ x 6″ lumber boards to the length of the opening (distance between the brackets on the opposite rails) and fasten into the brackets.
- Fasten the operating bar onto the bracket and now you can freely move your fence boards to open or close. For a permanent unique design, remove the operating bar, rotate the boards as desired and secure into position.
Download PDF Instructions (1.3 Mb)
Watch how-to video
Dimension Guide
Use this guide to determine the number of boards and FLEXfence kits you will need. Kits can be easily cut to size.
One 4-foot kit
| Width of opening | Number of 1" x 6" boards | Space from fence frame to first hole in rail |
|---|---|---|
| 12" | 2 | 4" |
| 24" | 5 | 4" |
| 30" | 6 | 5" |
| 36" | 8 | 4" |
| 42" | 9 | 5" |
| 48" | 11 | 4" |
Two 4-foot kit
| Width of opening | Number of 1" x 6" boards | Space from fence frame to first hole in rail |
|---|---|---|
| 54" | 12 | 5" |
| 60" | 14 | 4" |
| 66" | 15 | 5" |
| 72" | 17 | 4" |
| 84" | 20 | 4" |
| 96" | 23 | 4" |
Calculator
How many boards do I need? To determine number of 1″ x 6″ boards required, enter the size of your opening in inches.
*Guide purposes only
Accessories
FLEX•Roof Bracket
(4″x4″ Post Tops)
Slides onto 4″ x 4″ post tops
Specifications
• Size dimension: 18″ x 12″ x 3″
• 30 degree slope on each side
• Made from 14 gauge steel
• Finish: Powder coated black
• Pre-punched mounting holes for #10 & 5/16″ diam. fasteners
FLEX•Roof Bracket
(6″x6″ Post Tops)
Slides onto 6″ x 6″ post tops
Specifications
• Size dimension: 18″ x 12″ x 6″
• 30 degree slope on each side
• Made from 14 gauge steel
• Finish: Powder coated black
• Pre-punched mounting holes for #10 & 5/16″ diam. fasteners
FLEX•Post Bracket
(4″x4″ Post Bottoms)
Drainage holes on bottom of shoe
Specifications
• Size dimension: 12″ x 7″ x 10″
• Made from 14 gauge steel
• Finish: Powder coated black
• Pre-punched mounting holes for 5/16″ diam. fasteners
FLEX•Post Bracket
(6″x6″ Post Bottoms)
Drainage holes on bottom of shoe
Specifications
• Size dimension: 14″ x 9″ x 10″
• Made from 14 gauge steel
• Finish: Powder coated black
• Pre-punched mounting holes for 5/16″ diam. fasteners
FLEX•Angle Brace
(For Deck Roofs)
Specifications
• Size dimension: 22″ x 1″
• Made from 3/16″ thick steel
• 2 mounting 5/16″ diam. holes
• Finish: Powder coated black
FLEX•Awning Bracket
Key holed for easy installation
Decorative Scroll
Specifications
• Size dimension: 15″ x 15″
• 30 degree slope
• Made from 3/16″ thick steel
• Finish: Powder coated black
Product Testing

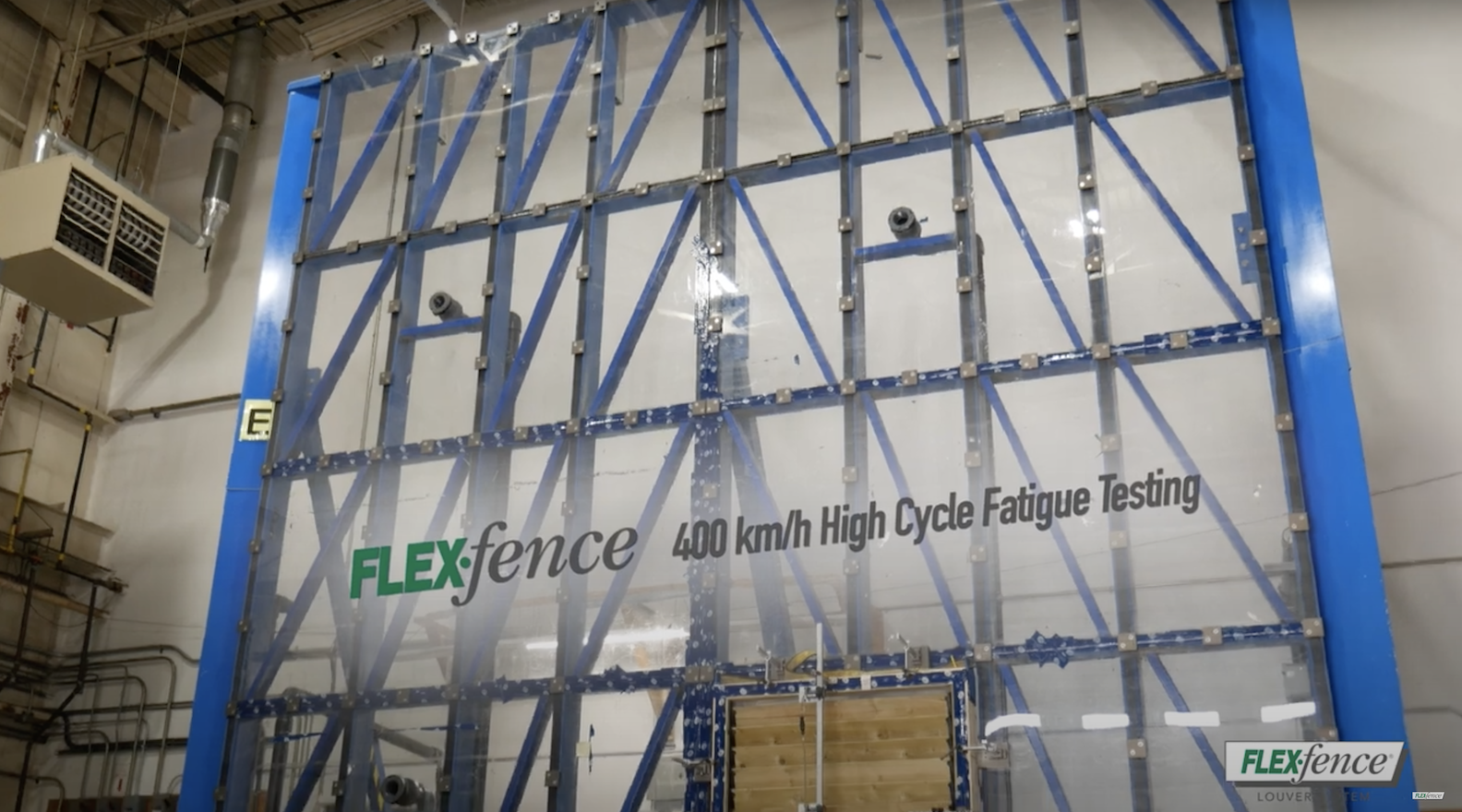

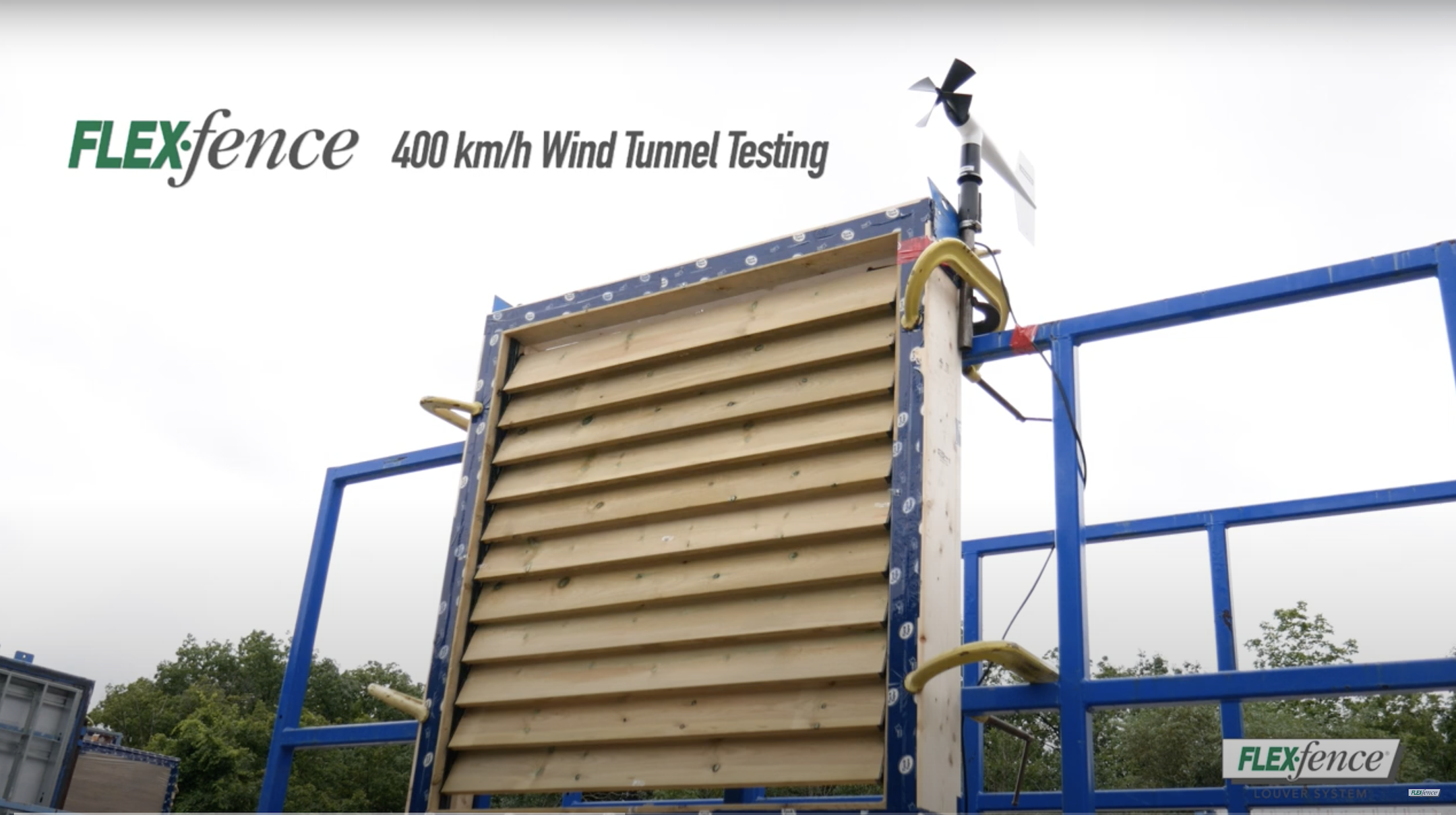

FLEXfence has been tested for snow loads and wind. The Independent testing determined that FLEXfence Louver Hardware infill sustained a load application of 5.17 KPa (107.98 psf).
Performance evaluation of FLEXfence Louver Hardware in accordance with the 2017 Ontario Building Code (OBC) Section 9.8.8.2(2) – English
Performance evaluation of FLEXfence Louver Hardware system in accordance with ASTM E330-02 (2010) – English
Performance evaluation of FLEXfence Louver Hardware system in accordance with ASTM E330-02 (2010) – French
Performance evaluation of FLEXfence Louver Hardware in accordance with the 2006 Ontario Building Code (OBC) 2006, Section 4.1.5.15 (2) – English
The FLEXfence Louver System Warranty
Consolaid Inc. proudly warrants to the original purchaser that its FLEXfence plastic parts are free from defects in material and manufacturing workmanship. If, after inspection, we find that the product was defective in materials or workmanship, we shall repair or replace it without charge. Consolaid Inc., at its option, will repair or replace the defective material except where damage is caused by any of the following:
- Improper installation.
- Where liability is limited by the laws of the governing jurisdiction. It is expressly understood that Consolaid Inc.’s liability how so ever caused shall be limited to the purchase price paid for the FLEXfence
Conditions not covered by this Warranty
This WARRANTY covers defects in material and/or manufacturing of the plastic parts. It does not cover failure of or damage to such products resulting from faulty or improper installation; settlement or failure of any structure on which the product(s) is installed; settlement or soil movement; misuse; intentional or negligent acts or damage; fire, wind, flood, hail, lightning or other acts of God; improper care or failure to provide reasonable and necessary repair to the product; normal and expected weathering of the surface*, mildew, exposure to harmful chemicals, vapors or acid rain and surface discoloration due to atmospheric pollution.
This Warranty does not apply to fastening hardware supplied.
This Warranty does not apply to damage incurred on any carrier.
*Normal weathering is defined as exposure to ultraviolet light and extremes of weather and atmosphere which will cause any colored surface to experience changes.
Claims and remedies if the product falls within the warranty guidelines
Return prepaid with proof of purchase to:
Warranty Service
Consolaid Inc.
#11-55 West Beaver Creek Road
Richmond Hill, Ontario L4B 1K5
(905) 669-0861
